Super 1100L LINKAGE Sprayer with 71L/min pump

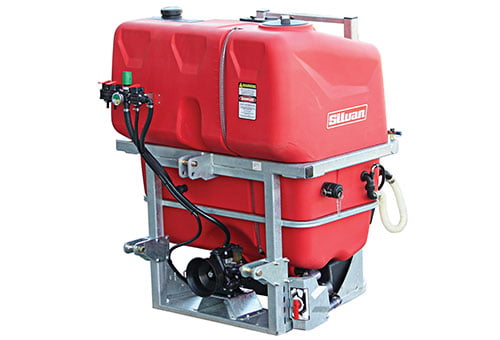

Linkage 1100 litre Super sprayer with 71L/min pump, without boom. Ideal for pasture spraying. Note: image featured shows BP125/20 (121L/min) pump.

Product Code: K11NH-75

Super 1100L LINKAGE Sprayer with 71L/min pump

specifications

Tank Size (L):

1100

Connection Type:

Linkage

Pump Size (L/min):

71

Height / Width / Length (MM):

1610 / 1395 / 1350

Product Weight (KG):

160

Application:

Pasture and Ag Lifestyle.

Download Product Guide

Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP75/20: 71L/min. capacity 2000kPa pressure.

    3 outlet manual control valve with pressure regulator.

    Galvanised steel, with adjustable cat II hitch. Vertical boom channel positions boom at optimum spray height.

    Factory Options

    6, 8 or 10m Field booms

    6, 8, or 10m Devil boom with hydraulic fold

    10, 12, 14 or 15m HD Devil boom with hydraulic fold

    Hydraulic lift, galvanised single hydraulic system - 6, 8 & 10m devil booms (032-19DL)

    Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m HD Devil booms (032-40DL)

    Hydraulic lift with airbag suspension - 10, 12, 14 & 15m HD Devil booms (032-40DLAB)

    8 or 10 Jet vine boom (Used with BP60/20 pump only)

    Olive boom (Use with BP125/20 pump only) (032-R)

    Undervine and mid row boom (032-HERB)

    Boomless nozzle mounting kit (brass nozzle not included) (K99-10)

    70L flush tank kit to flush the filter, spraylines and nozzles (K99-47)

    16L foam marker (double side) (K99-39)

    57L Paddock marker foam marker (K99-43)

    Economy hosereel, 20m hose (10mm ID) & Triam spraygun (180E02012CT)

    Reel tuff 12V remote reel with Turbo 400 spray gun (K99-51)

    Electric on/off control 3 section (K99-34)

    Electric control 3 section with in cab pressure adjustment (K99-29)

    Bravo 180S automatic rate controller (J99-151)

    Silmix chemical hopper (K99-21)

    Note: Not all options will fit all models. Extra charges may apply to fitment.
