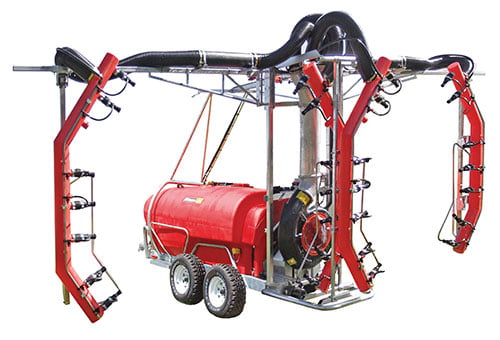

3500L P55DSE TRAILED 2 ROW TURBOWRAP

Trailed over row P55DSE 2 row 3500 litre turbowrap sprayer with a hydraulic drive 350L/min stainless steel pump, 550mm turbine fan, sprayheads, automatic spray rate controller, wide angle shaft and tandem suspension axle. Ideal for vineyards.

Product Code: GTU38CB5S2

specifications

Market:	Viticulture
Tank Size (L):	3500
Connection Type:	Trailed
Min PTO HP:	70
Pump Size (L/min):	350
Height / Width / Length (MM):	3300 / 1800 / 4975
Product Weight (KG):	1100
Application:	Vineyards
Folded Width :	2800

Download Product Guide

Request More Information

Find Your Nearest Dealer

Key Features

Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal.

P55DSE: 550mm dia. turbine fan, 3700 rpm. Power consumed 50 kw / 67HP.

Air shear.

Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.

Galvanised steel chassis, adjustable drawbar with jockey wheel.

View all features

Show less

Factory Options

Quick turning hitch (D99-170)

Hydraulic row width/height adjustment

Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models. Extra charges may apply to fitment of some options.
