3500L TURBO SCRAM TRAILED 2 ROW TURBOWRAP SPRAYER

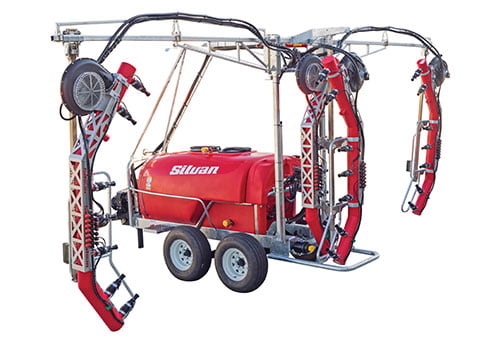

Trailed over row 3500 litre turbo Scram 2 row turbowrap sprayer with 4 x 320mm fans, 350L/min hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle. Note: infield image shows the 2000L model.

Product Code: STU38HB5S2

3500L TURBO SCRAM TRAILED 2 ROW TURBOWRAP SPRAYER

specifications

Market:	Viticulture
Tank Size (L):	3500
Connection Type:	Trailed
Min PTO HP:	60
Pump Size (L/min):	350
Height / Width / Length (MM):	3300 / 1800 / 4975
Product Weight (KG):	1100
Application:	Vineyards.
Folded Width :	2800mm

Download Product Guide

Request More Information

Find Your Nearest Dealer

Key Features

Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal. Driven by tractor remotes.

320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP.

Air shear.

Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.

Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.

View all features

Show less

Factory Options

Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)

Hydraulic row width/height adjustment

Hydraulic pump driven through power pack (D99-185)

100L Flush Tank (to suit 3500L unit) (J99-112)

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models. Extra charges may apply to fitment of some options.
