4000L G2 TURBO SCRAM TRAILED 3 ROW TRI-WRAP

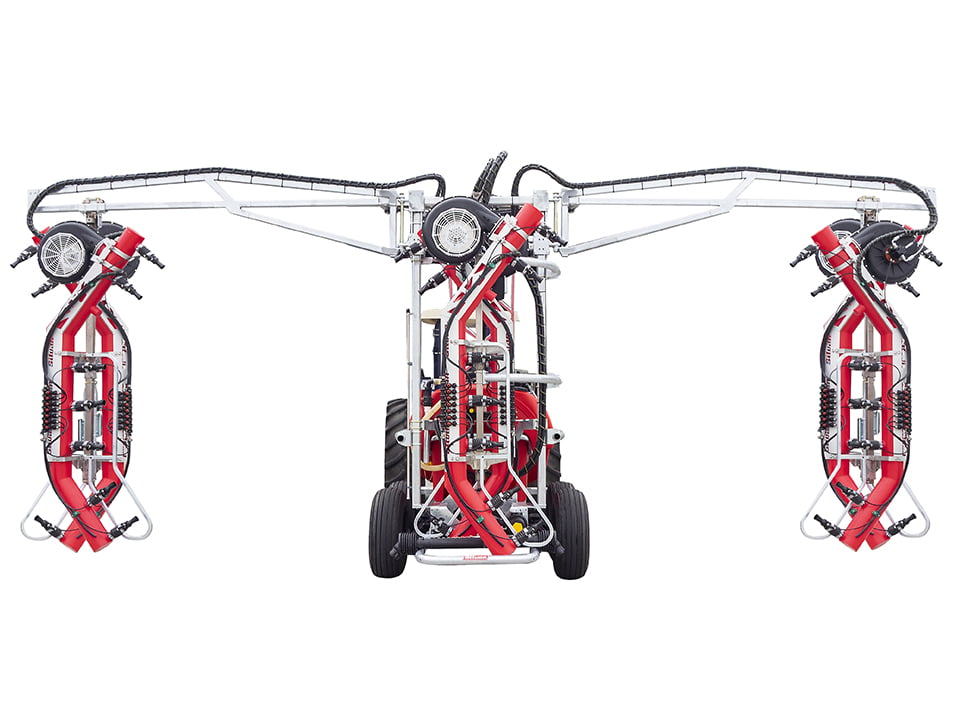

Trailed over row 4000 litre G2 turbo SCRAM 3 row tri-wrap sprayer with sprayheads, 4 x 320mm fans, 350L/min Hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle. Ideal for vineyards. Note: infield image shows 2000L 2 row Turbo SCRAM.
Product Code: STU48HB6S3
specifications
Market: |
Viticulture |
---|---|
Tank Size (L): |
4000 |
Connection Type: |
Trailed |
Min PTO HP: |
80 |
Pump Size (L/min): |
350 |
Height / Width / Length (MM): |
3300 / 1950 / 5730 |
Product Weight (KG): |
2000 |
Application: |
Vineyards. |
Folded Width : |
2800mm |
Request More Information
Find Your Nearest Dealer
Key Features
Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal. Driven by tractor remotes.
320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP.
Air shear.
Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.
