APS145 Diaphragm Pump

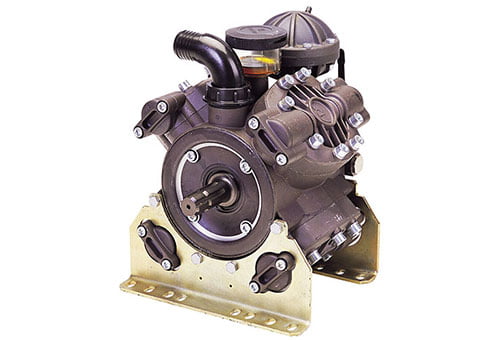

142L/min pump with Male - Male shaft. All Silvan APS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming and feature a corrosion resistant cast anodised aluminium body. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
Product Code: CAPS145
specifications
Pump Size (L/min): | 142 |
|---|---|
Height / Width / Length (MM): | 420 / 380 / 342 |
Product Weight (KG): | 46 |
Max Pressure : | 5000(kPA) |
Shaft : | Male - Male |
Diaphragms : | 4 |
HP required at max. pressure : | 18 |
Request More Information
Find Your Nearest Dealer
Key Features
All Silvan APS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming and feature a corrosion resistant cast anodised aluminium body. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
