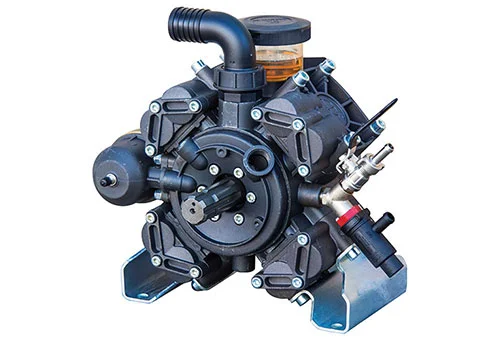

APS96 Diaphragm Pump
88L/min pump with Male - Female shaft. Additional model also available with male-male shaft (CAPS096). All Silvan APS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming and feature a corrosion resistant cast anodised aluminium body. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
Product Code: CAPS096MF
specifications
Pump Size (L/min): | 88 |
|---|---|
Height / Width / Length (MM): | 340 / 345 / 236 |
Product Weight (KG): | 22.5 |
Max Pressure : | 5000(kPA) |
Shaft : | Male - Female |
Diaphragms : | 4 |
HP required at max. pressure : | 11.7 |
Request More Information
Find Your Nearest Dealer
Key Features
All Silvan APS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming and feature a corrosion resistant cast anodised aluminium body. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
