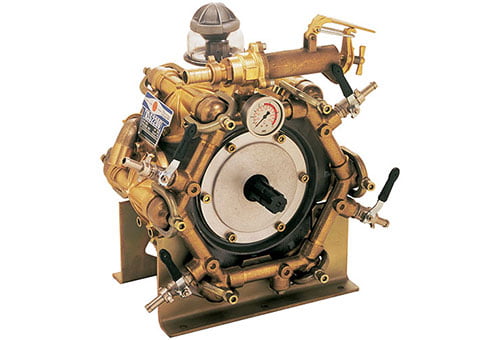

IDS2200 Diaphragm Pump
208L/min pump with Male - Male shaft. All Silvan IDS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming & feature a corrosion resistant cast anodised aluminium body with brass heads and manifold. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
Product Code: CDS2200-1
specifications
Pump Size (L/min): | 208 |
|---|---|
Height / Width / Length (MM): | 500 / 463 / 357 |
Product Weight (KG): | 76 |
Max Pressure : | 5000(kPA) |
Shaft : | Male - Male |
Diaphragms : | 6 |
HP required at max. pressure : | 26.2 |
Request More Information
Find Your Nearest Dealer
Key Features
All Silvan IDS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming & feature a corrosion resistant cast anodised aluminium body with brass heads and manifold. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
