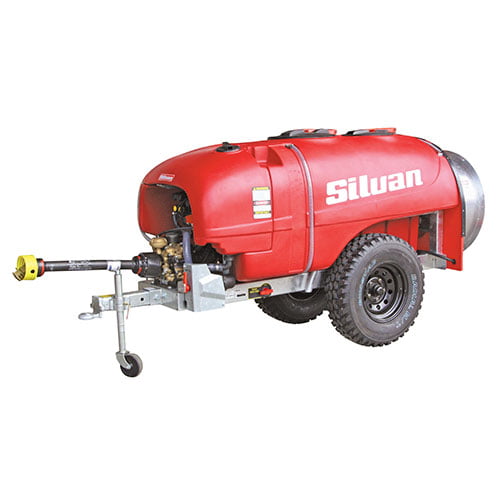

Trailed Compact Supaflo 1000L Sprayer
Trailed air assist Compact Supaflo 1000 litre sprayer with a 93L/min diaphragm pump, 700mm fan and electric valve controls. Ideal for narrow vineyards, orchards and trellis tomatoes.
Product Code: AB11AF8R
specifications
Market: | Horticulture Viticulture |
|---|---|
Tank Size (L): | 1000 |
Connection Type: | Trailed |
Min PTO HP: | 40 |
Pump Size (L/min): | 93 |
Height / Width / Length (MM): | 1500 / 1100 / 2860 |
Product Weight (KG): | 300 |
Application: | Vineyards and Orchards |
Request More Information
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS960:93L/min. capacity, 5000kPa pressure. IDS1401:135L/min. capacity, 5000kPa pressure.
700mm axial flow type, 8 bladed fan with curved nylon reinforced blades and protective mesh cover.
Flip-over type for dilute/concentrate spraying. Ceramic HCC nozzles. 12 double sided nozzles (6 per side) twist on/off.
40 Bar electric section valves, master valve, electric pressure regulator and in-cab controls.
Galvanised steel with jockey wheel and adjustable drawbar.
