SUPAFLO G2E 4000L sprayer with Radak fan

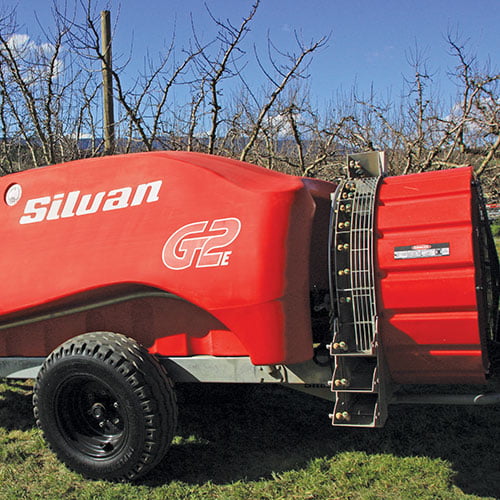

Trailed air assist 4000 litre G2E sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and Radak conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high. Note: the images featured show the Powerhead fan.
Product Code: EAB43RF2G
specifications
Market: |
Horticulture |
---|---|
Tank Size (L): |
4000 |
Connection Type: |
Trailed |
Min PTO HP: |
80 |
Pump Size (L/min): |
161 |
Height / Width / Length (MM): |
2020 / 1880 / 5050 |
Product Weight (KG): |
1220 |
Application: |
Orchards. |
Request More Information
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads & manifolds. IDS1701:161L/min. capacity, 5000kPa pressure.
920mm axial flow type,10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement/disengagement and protective mesh cover.
24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl plates per side. (16 per side with the Radak conveyor).
40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
Galvanised steel, heavy duty stand & adjustable drawbar.
